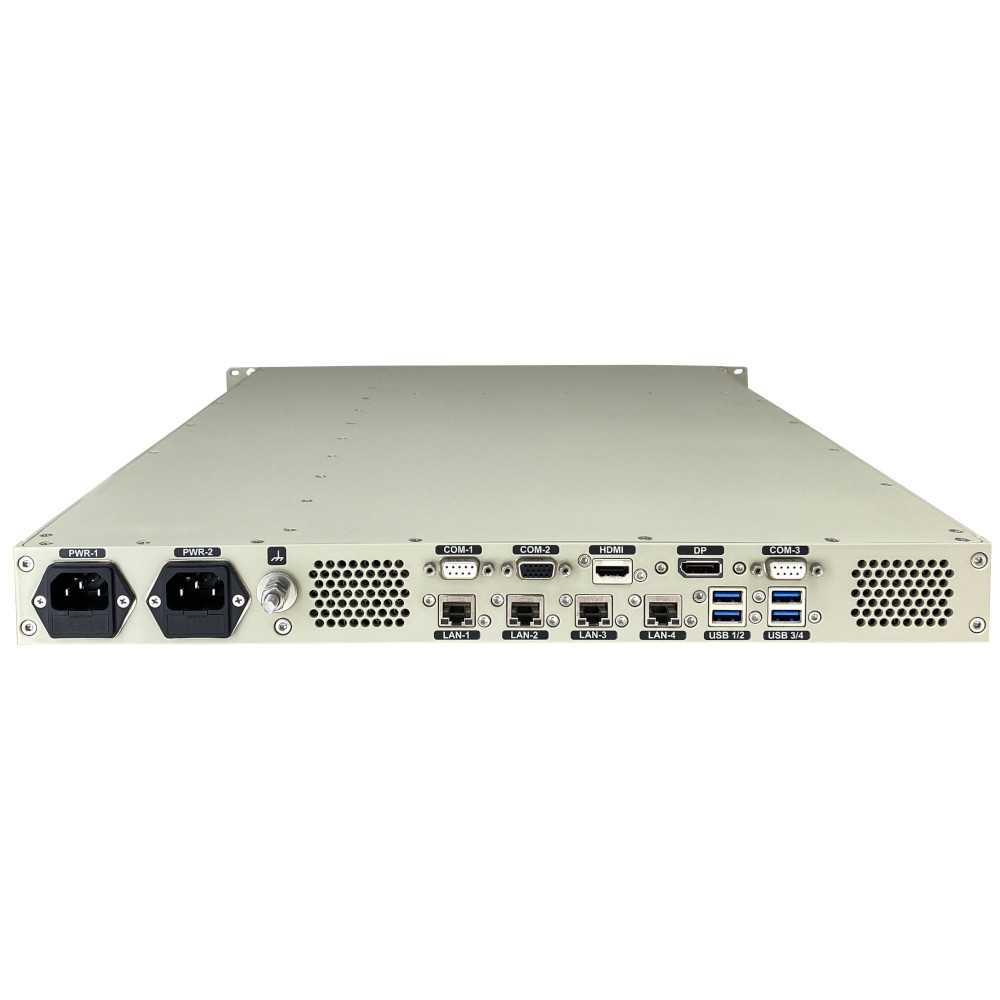

1U Military Rugged Server with Redundant Power Supply
SRV600-946-1R
The SRV600 is 19" rack-mountable 1U military rugged server incorporating Intel Xeon E-2278G 5GHz CPU with 128GB DDR4 RAM. Despite of dual power supply, its proven EMI/EMC design easily passed MIL-STD-461G's major methods(CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS101, RS103) with Navy levels. Its 60cm depth makes its expansion slots to accept various special purpose add-on cards. Can be delivered with AMDTEC's voice recording software. At full CPU load it only generates 51db @1m distance.
- Test reports available
- No export license
| Specifications | Values |
|---|---|
| CPU | Option 1: Intel Xeon E-2176G, 6 Core, 12 MB SmartCache, 3.70 GHz(Max 4.70 GHz) Option 2: Intel Core i7-9700E, 8 Core, 12 MB Cache, 2.60 GHz(Max 4.40 GHz) Option 3: Intel Xeon E-2278GE, 8 Core, 16 MB Cache, 3.30 GHz(Max 4.70 GHz) Option 4: Intel Xeon E-2278G, 8 Core, 16 MB Cache, 3.40 GHz(Max 5.00 GHz) |
| Chipset | C246 |
| Graphics | Intel HD Graphics 630 |
| Memory | Max 128 GB DDR4 2666 Mhz ECC/Non-ECC RAM |
| Network | 4x Gigabit LAN |
| Storage | 2x Front Accessible Hot-pluggable SSD with RAID 0,1,5,10 Up to 5x Internal SSD with RAID 0,1,5,10 Optional: Zeroize Function |
| Video Outputs | 1x Display Port(Up to 4096x2160), 1x HDMI(Up to 4096x2160) |
| Serial | 4x RS232/422/485 |
| USB | 2x USB 3.0 front and 4x USB 3.0 rear |
| GPIO | Up to 4x Isolated Open/Short Max 9A |
| Audio | 1x Mic & 1x LineOut |
| DVD-RW | 1x DVD-R/RW Dual Layer |
| Power Input (Redundant) | Option 1: 90 ~ 264V AC 47~63Hz Option 2: 10 ~ 33V DC, MIL-STD-1275E Option 3: 10 ~ 33V DC, MIL-STD-704F, DO-160(Section 16-18) Option 4: TEMPEST certified AC/DC Adapter |
| Power Consumption | Max 220W |
| Remote ON/OFF | Through RS485 |
| Operating System | Windows 2016/2019 Server, Windows 10/11, CentOS, Ubuntu |
| Cooling Method | 4x Fans |
| Misc. | GPU options, add-on cards |
| Weight | 8,5 kg based on configuration |
| Dimensions (WxHxD) | 480,6 x 43,45 x 580 mm (Excl. Front handles and grounding screw) |
| Chassis Construction | Aluminum Alloy |
